Virginia Polytechnic Institute and State University

ESM 4714 Fall 2000

Christopher W. Thornton



"Visualizing the Discrepancy between Physical and Virtual Measurement of the Six Degrees of Freedom in the CAVE"







Measurement Point Model for y

y = 3.0 (tracker position)

Generated with SpyGlass Dicer 2.01

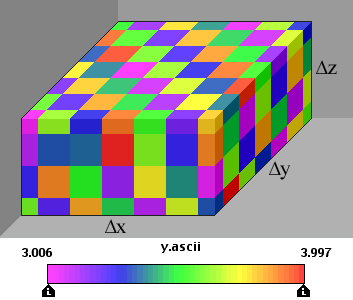

The image and animation above represent the y component of the recorded tracker data. The image represents the range of y position values the tracking system registers while the tracker is stationary. The Quicktime movie is a real-time animation of the y postion points as they are recorded.
